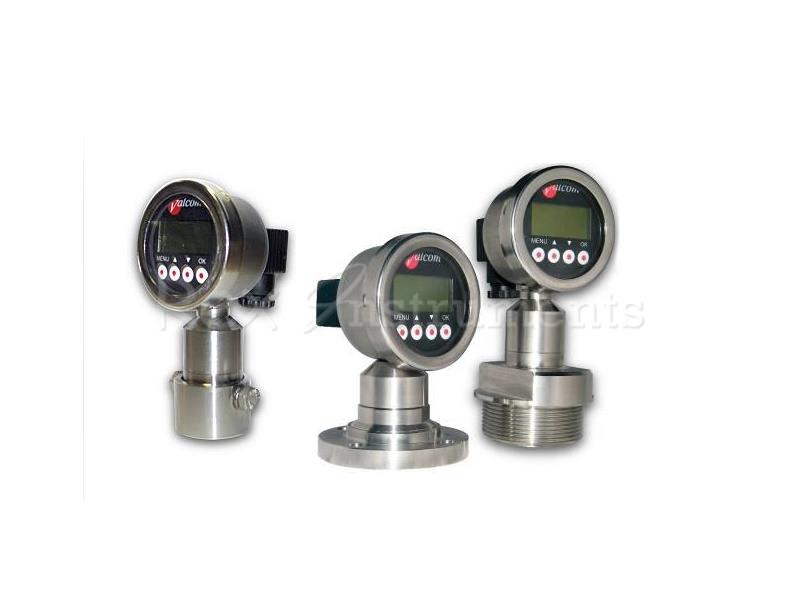

VALCOM T76 Pressure & Differential Pressure Transmitter

Product Description

T76 series includes SMART electronic transmitters featuring extremely reduced size with 4?20mA output and HART? digital communication protocol. Sensors are calibrated individually together with their own seal. Configurations and adjustments can be made locally by means of push buttons and display or remotely using HART? protocol compatible communicators.

T76 series transmitters are used in industrial and marine applications to detect pressure and level of liquids, gas and vapours.

Field of Application:Pressure & Differential Pressure
Typology:Level Continuous, Pressure
Measure Principle:Ceramic, Piezoresistive
Measuring Range:-1 ~ 0 bar, 0 ~ 1000 bar
Process Connection:1" G-M, 1/2" G-M, 1/2" NPT-M
Process Temperature:Capillary: -40 Deg C ~ +280 Deg C, Finned body: -40 Deg C ~ +130 Deg C, Standard: -40 Deg C ~ +85 Deg C
Accuracy Class:< 0.07 % FS
Solution:Chemical & Pharmaceutical, Food & Beverage, Marine, Pulp & Paper, Water & Wastewater
