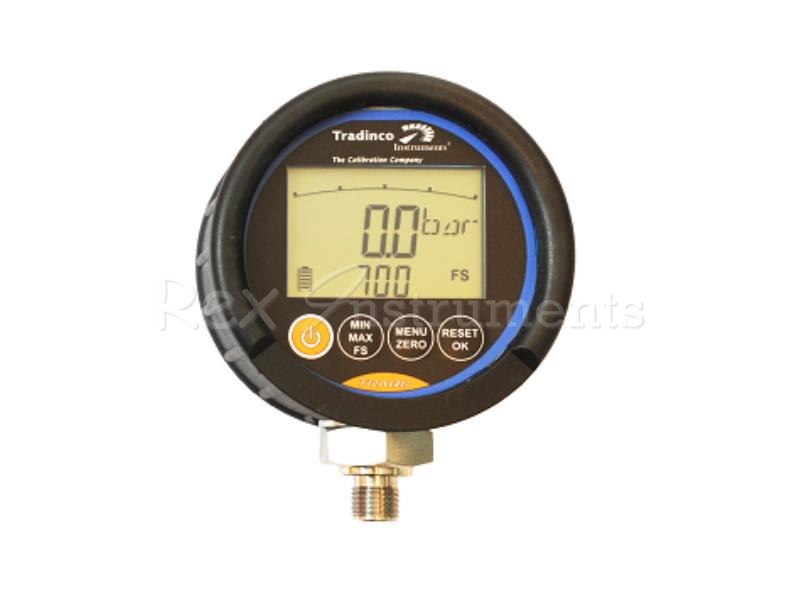

Tradinco Traqc-1 DPG digital pressure meter

Product Description

Digital pressure gauges are particularly suitable for both stationary and mobile measurement and display of pressure. They can be used as reference pressure gauges to simplify the checking, adjustment and calibration of other pressure measurement devices directly on site.

High accuracy in signal acquisition is achieved by using high-performance measuring cells with electronic linearisation of the characteristic curve. Ease of use is assured by innovative design and advanced technology. All essential functions for everyday use can be selected conveniently at the press of a button. Excellent protection against dust and moisture is provided by a membrane keypad or rubber buttons.

Power is supplied by long-life batteries (ordinary or rechargeable). An external AC adapter can also be used. To increase battery operating time, a programmable Auto-Off function switches off the power to the instrument after prolonged inactivity. The electronics are designed for extremely low power consumption, which enables a battery life of significantly more than 1500 hours.

Pressure reach from -1 to 1000 bar
Long battery life
Accuracy from 0,5% FS or 0,1% FS
Excellent protection against dust and moisture

Pressure ranges: -1...3, 5, 10, 20, 40 ,60 barg, 0... 100, 160, 250, 400, 700, 1000 barg
Tare / Zero
Selectable units:bar, mbar, kPa, MPa, PSI, kg/cm² bar
Multi-functional LCD 4 ½ digit
Bargraph
Illumination
Display filter
Min / max value
Connection G¼
Material 14.404
Medium temperature -20...80 °C
Degree of protection IP67 (front) / IP67
Dimension Ø 80 mm T=30 mm H=100 mm
Material Zinc casting
Operating temperature 0...50 °C
Weight 540 g
