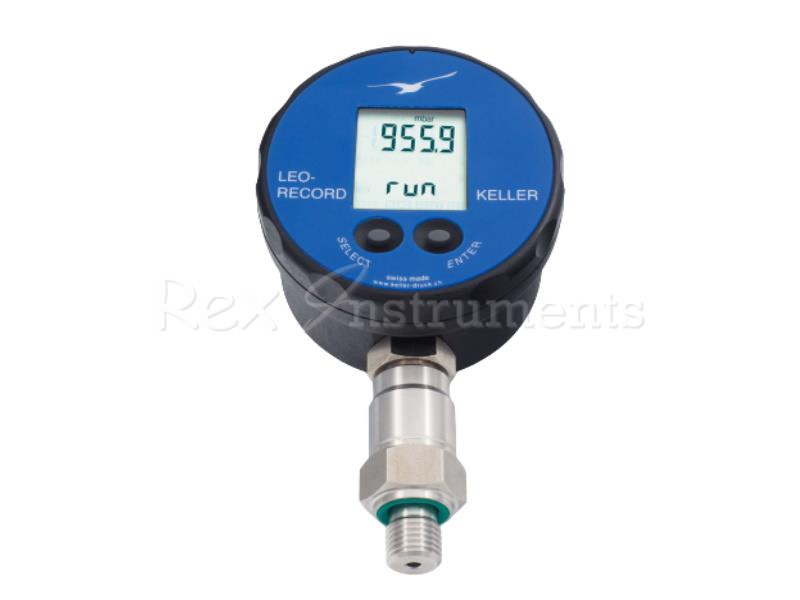

KELLER LEO-Record Digital Pressure Gauge

KELLER LEO-Record Digital Pressure Gauge

Product Description


Description

Data



The high-accuracy LEO-Record digital manometers can record pressure and temperature autonomously for long periods thanks to their memory function. The data logger can be connected to a computer via the RS485 interface for configuration and for reading out the recorded data. The current pressure value can be displayed in a wide variety of units of pressure. Power is supplied by a high-quality 3,6 V lithium battery.

  • High accuracy
  • Insulated and encapsulated piezoresistive pressure sensor
  • Pressure and temperature recording
  • Non-volatile memory ensures a high degree of data security
  • Very low power consumption, long battery life
  • Optional: Intrinsically safe version LEO-Record-Ei available for use in explosive environments
  • Wide range of pressure units to choose from
  • Zero point calibration via button
  • 5 user-defined pressure units configurable via software
  • Record function can be stopped and started manually
  • Various configurable recording functions



  • Pressure Ranges -1…3 to 0…1000 bar
  • Accuracy ±0,05 %FS
  • Total Error Band ±0,1 %FS @ 0…50 °C
  • Interfaces RS485
  • Special Characteristics Measured value recording
  • Display 5-digit LCD display
  • Reading Capacity 57'000 measuring points
