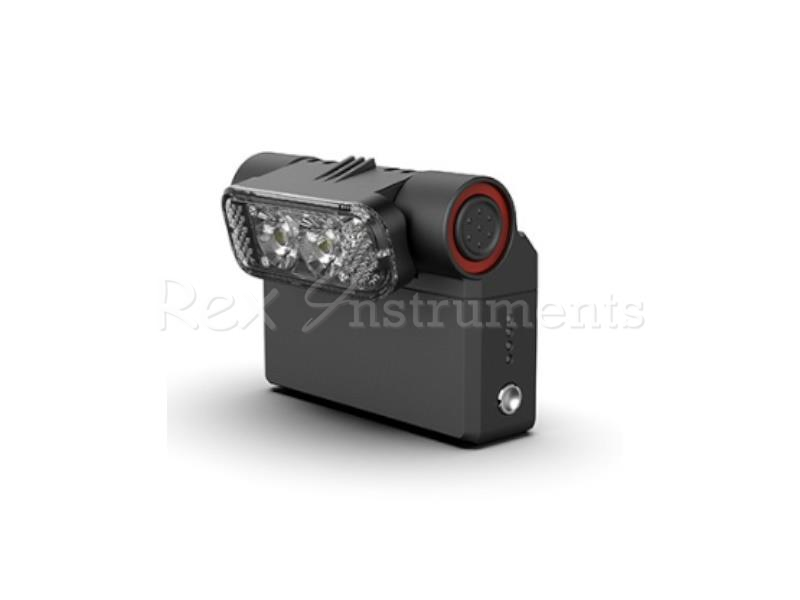

Goaltek Explosion Proof LED Torch ExMP61R-2

Explosion Proof LED Torch ExMP61R-2

Product Description

Intrinsic Safety Ex-Proof Torches ExMP61R-2 (Lithium battery)

Nylon PA12 material
Ultrasonic welding, combining two plastics into one, with higher protection level

Metal Lamp Head enhances heat dissipation
Power indicator
108 ° Rotational Head
Lumileds LED

Safety Release valve (Ensure hydrogen discharge is necessary)
Ergonomic design for strong skid resistance
Lightweight: 209g
WF2, Anti-UV, Anti-Static & Anti-corrosion
Special Environment Applicability -40 °C ≤ Ta ≤ +55 °C high and low-temperature resistance to meet each harsh and hazardous environment.
1m Impact resistant
Smart wearing (Headband type, Headband, and helmet type, Helmet connecting type, Pocket clip)
Large button design, friendly to glove-on work.
Power indicator
work mode and Strong mode
Press for 2s for SOS mode
Built-in 6700mAh Li-ion Battery
Multi Charging modes serving various needs (USB Type-C charging, Integrated charging track rail)

Certifications: IECEx, ATEX
IECEx: Ex ia IIC T4 Ga; Ex ia IIIB T130 °C Da
ATEX: Ex II 1 G Ex ia IIC T4 Ga; Ex II 1 D Ex ia IIIB T130°C Da
Usage: II Zone 0/1/2, and III Zone 20/21/22
Working ambient temp: -40 °C ≤ Ta ≤ +55 °C
Ingress protection: IP66/67
CCT:6500K
Luminous flux: ≥170lm (Strong mode), ≥90lm (work mode)
Run Time:≥10h (Strong mode), ≥18h(work mode)
Battery type: lithium battery (IEC61233, IEC 61960)
Battery capacity:3.6V, 6700mAh (IEC61233, IEC61960)
Charging way: match 1000/01-A61 charging base
Charging time:<14h
Recharging cycles:500 cycles
Lifespan:50,000h (without battery)
Position Indicator color (Optional): Red, Green, Yellow, Blue, White
Note: The luminous flux and continuous discharge time are the values measured under the environment of -20 °C ≤ Ta ≤ +55 °C.
