home > Brands> ECOM> ECOM Intrinsically Safe Precision Pressure Calibrator 721Ex

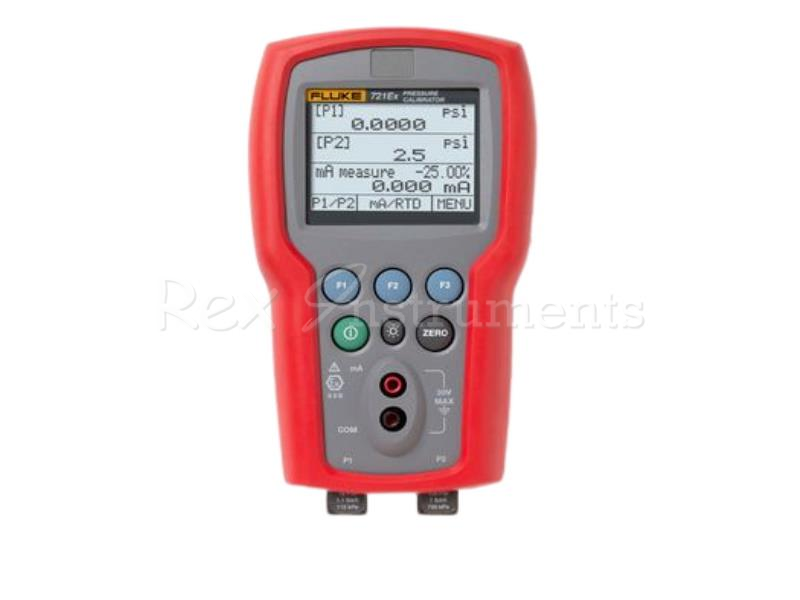

ECOM Intrinsically Safe Precision Pressure Calibrator 721Ex

Product Description

The 721Ex can be configured by selecting either a 16 PSI (1.1 bar) or 36 psi (2.48 bar) low pressure sensor then add any of 7 high pressure ranges including 100, 300, 500, 1000, 1500, 3000 or 5000 psi (6.9, 20, 24.5, 69, 103.4, 200, 345 bar).

Pressure calibration and temperature measurement for custody transfer applications
The Fluke 721Ex Precision Pressure Calibrator with dual isolated pressure sensors are the ideal tool for gas custody transfer applications allowing you to take simultaneous static and differential pressure measurements with a single tool.

Two isolated, stainless steel, pressure sensors with 0.025 % accuracy
Pressure displayed in the user's choice of 19 engineering units
Pt100 RTD input for temperature measurement, (probe optional)
Store five instrument setups for recall and use

Technical Data

INSTRUMENT SETUP RECALL:Last used on power-up
OPERATING TEMPERATURE:-10 °C to +45 °C
STORAGE TEMPERATURE (WITHOUT BATTERIES):-20 °C to +60 °C
ALTITUDE:2,000 meters
INGRESS PROTECTION:IP-40
POWER REQUIREMENTS6.0 v dc
BATTERY LIFE:>35 hours, typical usage
BATTERIES REQUIRED(:4) Standard AA cells
DIMENTIONS (HXWXD):7.9" X 4.3" X 2.3" (20 cm X 11 cm X 5.8 cm)
WEIGHT:0.539 kg (1 lb 3 oz)
CONNECTORS/PORTS PRESSURE:Two, 1/8 in NPT, 750P Series. Pressure Module (721 models only); RTD Probe
