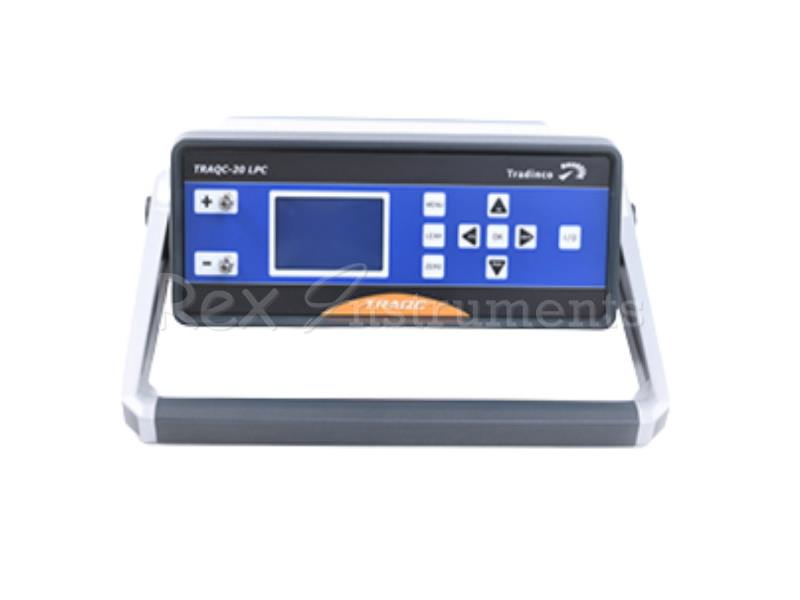

Tradinco Traqc-20 LPC Low Pressure Calibrator

Product Description

The LPC measures and generates pressures and consequently it is more than a mere measuring instrument – it can also be applied as test and calibration instrument for pressure sensors and pressure switches. Thanks to internal pressure generation no auxiliary tools are required for operation. An internal Li-ion battery is available for mobile operation. Parallel operation of mains and battery supply allows for maximum flexibility.

The Traqc-20 LPC is particularly suitable for stable pressure control in the very low pressure ranges (<<1000mbar), which is often used when environmental sensors need to be calibrated for cleanrooms, hospital areas and high-quality filters.

Very low pressure calibrator 0...1 to 0...1000 mBar
High precision
Compact size
Easily operated
Li-ion battery

Specifications

Pressure range 1 mbar, 10 mbar, 100 mbar, 1000 mbar
Accuracy 0.3 % FS, 0.1 % FS, 0.1 % FS, 0.1 % FS
Type of pressure Positive or negative gauge pressure or differential pressure
Pressure units Pa, kPa, hPa, bar, mbar, psi, inH2O, inHg, mmHg, Torr, mmH2O
Adjustment accuracy 0.05 %
Long-term stability < +/- 0.1% FS/year
Temperature drift ≤ 0.03 % FS/K 0.0 % with automatic of manual zero-point adjustment
Usable pressure range -10 - 110 %
Zero balance Automatic: in adjustable time intervals Manual: ZERO button
Instruments version desktop instrument with carry handle
Dimensions 102.6 x 257 x 271 mm without carry handle
Weight 4.5 kg
Ingress protection IP20
Pressure generation internal, electric pump
Screen Graphic display
Resolution 5 digits
Keyboard membrane keypad Menu
language German, English, Spanish and French
Connections Pressure connections 6.6 x 11 (hose diameter, D = 6 mm)
Power supply DC 24 V, 1 A
Battery type Li-Ion
Battery life approx. 8 h
Media Ambient air
Operating temperature 10 ... 40 °C
Storage temperature -10 ... 70 °C Specifications Di mensions
