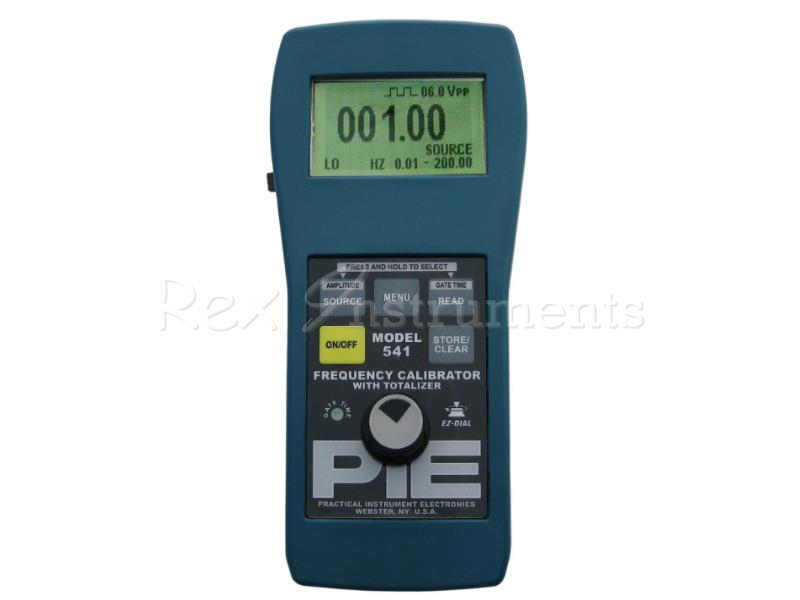

PIE 541 Frequency Process Calibrator with Totalizer function

Product Description

The PIE 541 Frequency Calibrator is designed for calibration, testing, and diagnosing turbine meters, frequency counters, vibration systems, tachometers, vortex shedders, integrators, and any other frequency devices in the shop, plant or field. Save hours of time compared to other calibration methods. When calibrating a totalizer, the Model 541 eliminates the need of a stop watch. Set the number of pulses and number of minutes required and it automatically stops when the selected number of pulses has been sent to the totalizer! The PIE 541 has a handy LED indicator showing gate time for easy trigger level adjustment. The LED also pulses with the frequency output for calibration of optical pickups.

Accuracy: ± 0.005% of range
5 ranges from 1 CPH (Count-Per-Hour) to 20.000 KHz for source and read
Totalize inputs/outputs from 1 to 99999 pulses in 1.0 to 100.0 minutes.
Read a wide range of frequencies and waveforms from 50 mV to 120V peak.
Source sine and square waves with zero based or zero crossing waveforms.
Adjustable output amplitude from 100 mV to 12 V peak-to-peak.
Gate trigger LED flashes in synch with the output frequency to calibrate optical pickups. This also allows easy adjustment of the attenuation for proper gate triggering.
EZ-Dial™ knob easily adjusts output by 1; press down and while turning the knob for a faster dialing speed
EZ-Check™ switch for instant 0% and 100% span adjustments
Store new EZ-Check™ values by pressing the EZ-Dial™ knob
Uses a standard 9V Alkaline battery with easy access to the battery compartment
Superior battery life of 45 hours under typical continuous usage
Small, tough and protected to 60V
Carrying case included and optional Test Data available
NIST Traceable Calibration Certificate included FREE

Easier to set up
Easy push button menu instead of turning the calibrator off and back on to change settings
Simpler and easier battery changes
Single 9V battery vs. 6 AA batteries. Auto off feature saves battery life
Smaller & lighter
Pocket sized and easier to carry
Calibrate optical pickups
LED flashes in sync with frequency output. LED also flashes in sync with reading for fast adjustment of trigger level.
