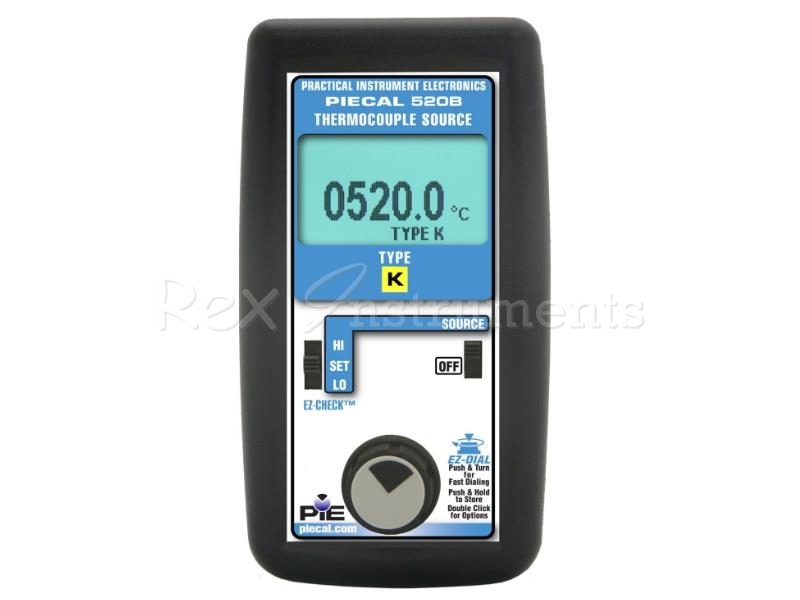

PIE 520B Single Type Thermocouple Calibrator

Product Description

Single T/C Simulator, Source only; also mV

The PIE 520B Thermocouple Simulator simulates a dedicated standard thermocouple curve over the entire industrial temperature range. The PIE 520B provides precise temperatures for inputs to all types of instruments such as transmitters, recorders, controllers, alarms, data acquisition, and computer systems. PIE 520B is cold-junction compensated for changes in ambient temperature. The PIE 520B offers the highest performance and functions in its class by exceeding the accuracy and functions of many higher priced thermocouple calibrators.

The low cost PIE Model 520B is an “easy as PIE” to use thermocouple source for checkout and calibration of all thermocouple instruments in the field, shop or control room.

Accuracy ±(0.015% of mV Setting + 0.009mV)
Calibrate in temperature for your T/C type
Adjustable temperature output in selectable 0.1°C or 0.1°F steps
Select from Types J, K, E, T, R, S, B, N, G, C, D, L, U and P
Typical accuracy of ±0.35°C (0.5°) for Type K
EZ-Dial™ knob easily adjust output by °C or °F with 0.1° resolution
Three position EZ-Check™ switch for 0% and 100% span adjustments
Uses standard “AA” Alkaline Batteries
Superior battery life of 45 hours under typical continuous usage
Easy access to battery compartment
Lightweight and Rugged with a Solid Feel
Small and tough
Protected to 60V
Optional Rubber Boot, T/C Wire with miniature connector and Carrying case available
NIST Traceable Calibration Certificate included FREE

Continuously select output temperatures
Works will all instrument ranges across the full range in degrees C & F. Not limited to 22 temperature steps!
Works with types J, K, E, T, R, S, B, N, G, C, D, L, U, or P
One source replaces ALL the ranges for any single T/C type of the Altek 22
Instantly select output three temperatures
Flip the EZ-Check™ switch to calibrate zero, span and mid-point
LCD display with backlight
Easy viewing in dark locations
More resistant to accidental damage
Reconfigure without resetting calibrator
Includes Certificate of Calibration
All PIE Calibrators come with a free signed and dated certificate. Altek calibrators come only with an unsigned Statement of Calibration Practices with a certificate of calibration available for an extra charge.
