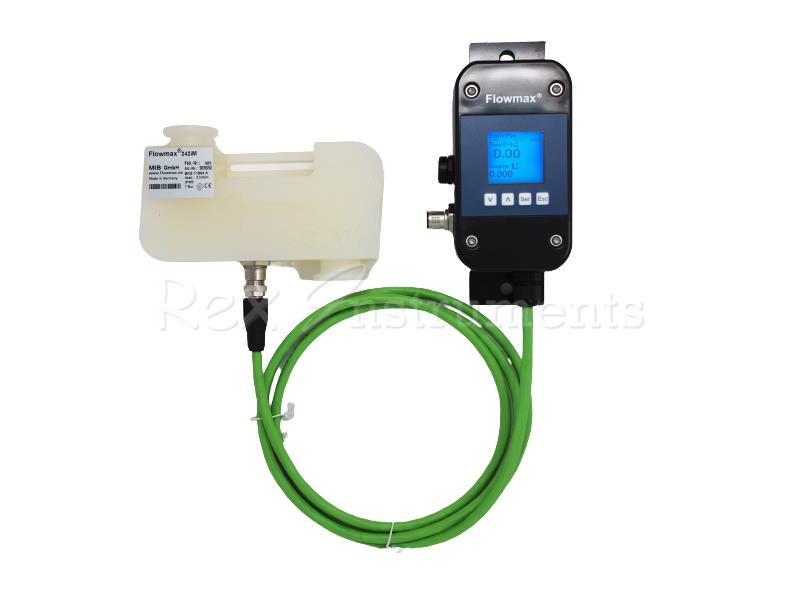

MIB ultrasonic flowmeter Flowmax 242i

Product Description

Flowmax 242i is a flow meter calculating the volume flow of liquids. Based on the ultrasonic technology Flowmax 242 i is able to measure conductive and non conductive liquids contactfree. Flowmax has no moving parts and is absolutely free of wear. The design of the pipe minimizes dead space over the whole geometry. All parts having contact to the medium are PP It has the USP Class VI approval and is resistant to gamma irradiation and is suitable for single use applications.

Thanks to its technical properties Flowmax is able to measure all kinds of liquids like DI Water, .Bio processing liquids, Cosmetics, liquid food, and also aggressive media Flowmax is characterized by its high measurement accuracy and repeatability Empty pipe detection is integrated. The calculated flow is provided with a response rate of a few milliseconds on the outputs.

Flowmax 242 i is suitable for operation with piston diaphragm and peristaltic pumps. Thus even lower flow rates can be measured for pulsating flow. The measuring system Flowmax 242 i consists of a calibrated measuring tube Flowmax 242 iM and evaluation unit (Flowmax 242 iE) include 2 m cable.

The calibration data of the measuring tube are deposited in the measuring tube. They will be transferred into the electronics so that the evaluation unit can be accessed on the measuring tube associated calibration. This ensures that the evaluation is always working with the correct measuring tube data.
