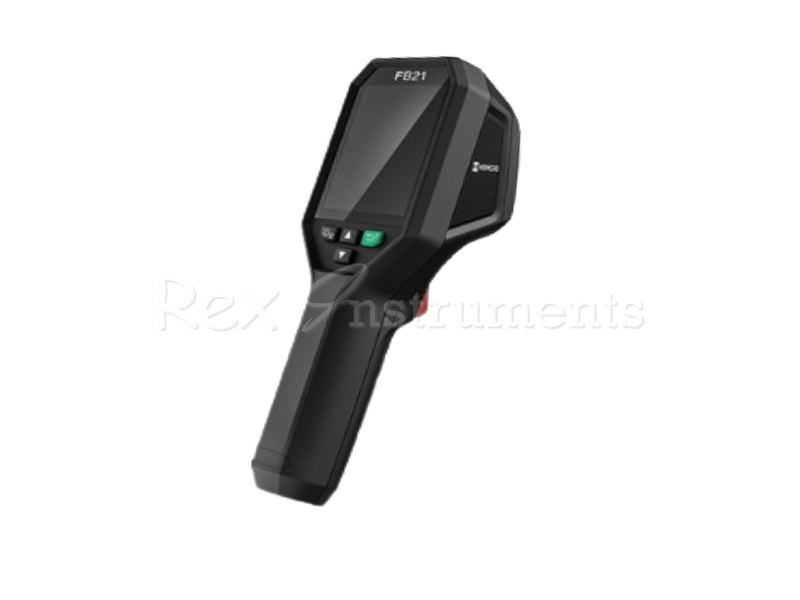

HIKMICRO FB21 Firefighting imaging camera

FB21_Flyer | HIKMICRO FB21 Firefighting imaging camera

Product Description

The HIKMICRO FB21 is a compact, reliable, firefighting thermal camera designed for firefighters to observe in total
darkness and smoke, helping to save lives, protect property, and keep firefighters safe.
Features like dual cameras, LED flashlights, easy-to-navigate buttons, and a temperature range of up to 550°C
(1022°F) help you work effortlessly in harsh environments. 8 color palettes for you to choose from, which satisfy
most application scenarios.

Key Feature
Thermal resolution: 256 x 192 (49 152 pixels)
NETD : < 40 mK (@ 25 °C, F#=1.0)
Temperature measurement range : -20°C to 550°C (-4°F to 1022°F）
Up to 10 minutes for ambient temperature -10°C to 90°C (14°F to 194°F) ; Up to 2 minutes for ambient temperature -10°C to 115°C (14°F to 239°F)
Measurement presets: Center spot, Hot spot, Cold spot, User Preset Point
25 Hz image frequency
3.2'' LCD screen display
Up to 6 hours continuous running
Support object details enhancement

Infrared Image
IR Resolution 256 × 192 (49,152 pixels)
NETD < 40 mK (@ 25 °C, F#=1.0)
Image Frequency 25 Hz
Detector Pitch 12 μm
Spectral Range 7.5 to 14 μm
Focal Length 3.6 mm
F-number F1.0
Field of View (FOV) 37.2° × 50.0°
Spatial Resolution (IFOV) 3.3 mrad
Min. Focus Distance 0.3 m (0.98 ft)
Focus Mode Focus Free

Image Display
Visual Camera 1600 × 1200 (2 MP)
Display 240 × 320 Resolution, 3.2”LCD Screen
Color Alarm Above alarm
Color Palettes: Basic, Black Hot, White Hot, Fire Detection, Rescue, Hot Area, Cold Area,Building
Image Modes Thermal/Visual/Fusion/PIP

Measurement and Analysis
Object Temperature Range -20°C to 550°C (-4°F to 1022°F)
Accuracy Max. (± 2°C/3.6°F, ± 2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)
Measurement Tools : Center Spot, Hot Spot, Cold Spot, User-definable: 3 spots

Data Storage and Communication
Storage Media Built-in 16 GB flash memory
Image Storage Capacity Approx. 90,000 Images

General
USB Interface USB Type-C
LED Light Yes
Battery Type Rechargeable Li-ion battery
Battery Charging Time Approx. 3 hours fully charged
Battery Operating Time Approx. 6 hours
Protection Level IP65
Drop Test Height 2 m (6.56 ft)
Working Temperature Range: Up to 10 minutes for ambient temperature -10°C to 90°C (14°F to 194°F); up to 2 minutes for ambient temperature -10°C to 115°C (14°F to 239°F)
Storage Temperature Range -20°C to 60°C (-4°F to 140°F)
Relative Humidity < 95% non-condensing
Weight Approx. 380 g (0.84 lb)
Dimension 221.7 × 73.5 × 123.8 mm (8.73 × 2.89 × 4.87 in)
Tripod Mounting UNC ¼”-20
