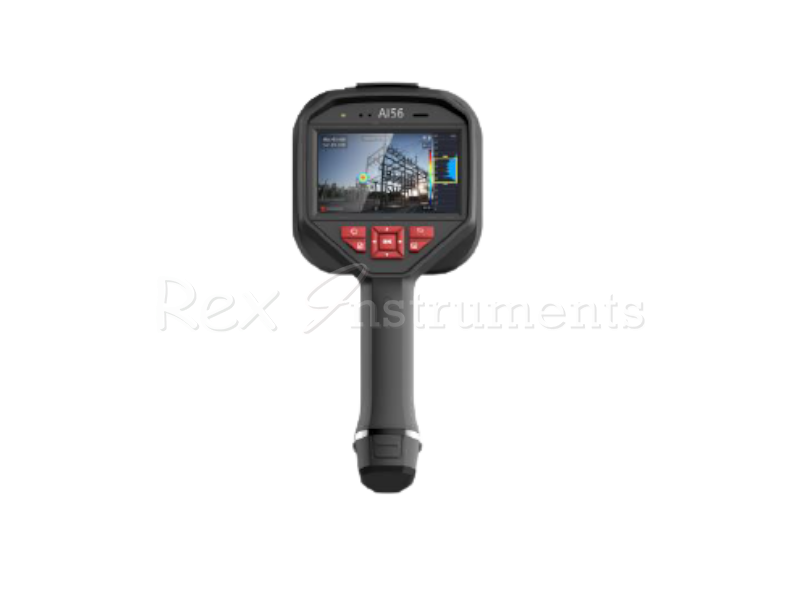

HIKMICRO AI56 Acoustic imaging camera

AI56_Flyer | HIKMICRO AI56 Acoustic imaging camera

Product Description

The HIKMICRO AI56 acoustic imaging camera is a professional product for gas leak detection and partial discharge detection. With 64 Low-noise MEMS microphones and an adjustable bandwidth range from 2 kHz to 65 kHz, AI56 provides an easy and effective way to locate pressurized air leaks in industrial environments or detect partial discharge in electric systems. By adopting this lightweight and easy-to-use tool, you can discover potential safety risks, minimize troubleshooting, and save extra costs for equipment failures and downtime.

Low-noise MEMS Microphones And Adjustable Bandwidth
With 64 Low-noise MEMS microphones and an adjustable bandwidth range from 2 kHz to 65 kHz. The AI56 provides an easy and effective way to locate gas leak detection and partial discharge from high-voltage systems.

Real-time Display Of Leakage Data
The AI56 offers real-time estimated leak rate, leak cost, and leak level for gas leak detection. AI56 can filter noise to “visualize” sound with large 4.3" LCD touch screen even in noisy environments.

4 types of Partial discharges
AI56 is able to identify corona, floating, surface, and particle discharges, and exclude background noise in the scene. Knowing the type and severity of the discharge enables the facility to schedule maintenance to minimize failures and downtime.

Analyzer Acoustic
Analyzer Acoustic software allows you to analyze and create reports based on field inspection images. These reports can then be exported providing interested parties with in-depth analysis such as the size and energy cost of a compressed gas leak, or the partial discharge classification.

Interchangeable Battery System
Includes 3 interchangeable Li-ion batteries and a dual bay charger to provide you with up to 10 hours of operation. You can stay powered up for even the longest inspections.

Complete Image Annotations
In addition to supporting voice, text annotations to the image helps to improve inspection efficiency and productivity.

Key Feature
64 Low-noise MEMS Microphones, real-time sound source localization
Real-time estimated leak rate, leak cost, and leak level for gas leak detection
Partial discharge detection can identify corona, floating, surface, and particle discharges
Analyzer acoustic software for analyzing images and export reports.
800 × 480 Resolution, 4.3’LCD Touch Screen
Supports 8 acoustic palettes

Acoustic
Number of Microphones 64
Acoustic Image Resolution 800 × 480
Bandwidth 2kHz~65kHz
Distance 0.3m~100m
Acoustic Image Palette 8: White Black, Black White, Rainbow, Fusion, Ironbow, Red Black, Rain, Blue Red
Camera FOV 50.2°× 35.4°
Sound Intensity Display Peak Point
Acoustic Image Frame Rate 25 fps
Dynamic Range : Low Limit: <-15dB, High Limit: >120dB
Leak Rate >0.008 l/min @ 6 bar from 0.5 m (1.64 ft), >0.013 l/min @ 5 bar from 1 m (3.28 ft)
Discharge Detection Automatic detection 50 / 60 Hz
Discharge Type Corona Discharge, Particle Discharge, Floating Discharge, Surface Discharge

Image Display
Display 800 × 480 Resolution, 4.3’LCD Touch Screen
Screen Brightness Manual/Auto
Digital Zoom 1.0x to 8.0x continuous

Data Storage and Communication
Storage Media Removable 64 GB SD Card
Image Storage Capacity 20,000 images
Annotations : Voice note: max. 60 seconds; Text note: max. 200 characters
Video Storage Capacity 60 hours
Video File Format MP4

General
Wi-Fi 802.11 b/g/n (2.4 GHz and 5 GHz), Hot Spot only
Bluetooth Bluetooth 4.1
USB Interface USB Type-C
HDMI Interface HDMI-D
Battery Operating Time Approx. 3.5 hours
Battery Type Dismountable and Rechargeable Li-ion Battery
Battery Charging Time 5 hours to full charge
Protection level IP40
Power Supply 5V DC/2A (Charging via USB)
Drop Test Height 1.2 m (3.94 ft)
Safety IEC 61010-1
EMC EN 55032, EN 50130-4, EN IEC 61000-3-2, EN 61000-3-3
Working Temperature Range -20 °C to 50 °C (-4 °F to 122 °F)
Storage Temperature Range -20 °C to 60 °C (-4 °F to 140 °F)
Relative Humidity ＜95 % non-condensing
Weight Approx. 940 g (2.07 lb)
Dimension 292.2 × 127 × 110.7 mm (11.50 × 5.00 × 4.36 in)
Tripod Mounting UNC ¼”-20
