Hawk Measurement Sultan Non-Contact Acoustic Wave Series

Product Description

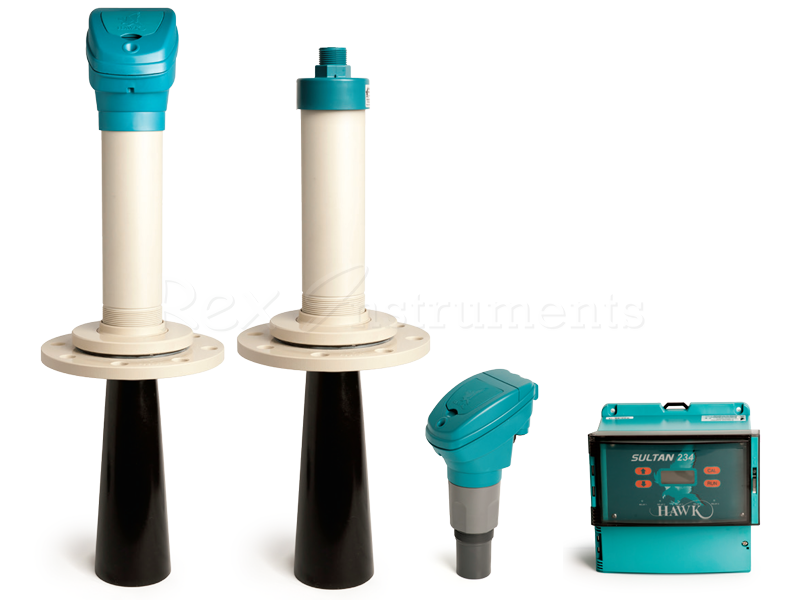

Sultan Non-Contact Acoustic Wave Series
The Sultan is a powerful non-contact Acoustic Wave transmitter for level, flow, positioning, and collision protection. This self-cleaning sensor requires zero maintenance and is ideal for measuring level of liquids, slurries, and solids. The combination of low frequency, high power, and signal processing (Adaptive Gain Technology) creates one of the world's most reliable level devices available on the market

Primary Areas of Application:

Tank or Vessel
Channel or Flume
Shaft
Basin
Stilling Well
Sewage Plant
Other

Principle of Operation
The transmission of high-powered acoustic waves ensures minimal losses through the environment where the sensor is located. Due to the high-powered emitted pulse, any losses have far less effect than would be experienced by traditional ultrasonic devices. More energy is transmitted hence more energy is returned. Advanced receiver circuitry is designed to identify and monitor low-level return signals even when noise levels are high. The measured signal is temperature-compensated to provide maximum accuracy to the outputs and display.

Self-cleaning sensor face requires no maintenance
Non-contact measurement
High power even with a two-wire loop supply
Wide range of communications: Power over Ethernet (PoE), GosHawk, HART, Modbus, Profibus PA, Profibus DP, Foundation Fieldbus, DeviceNet, Modbus over Ethernet TCP/IP, Wi-Fi
Programmable fail-safe mode

Frequency: 4kHz, 5kHz, 9kHz, 10kHz, 15kHz, 20kHz, 30kHz, 40kHz, 50kHz (4kHz & 9kHz are special long range versions)
Accuracy: +/- 0.25% of the measured range
Maximum Range: Up to 60m (196ft) for liquids, slurries, powders and solids. Up to 180m (588ft) for extended-range positioning applications
Unit Operating Humidity (max): 85% non-condensing
Power Supply: 110-240VAC (50-60Hz), 24VDC

Certifications
ATEX, IECEx, CE, CSA, CSA US
