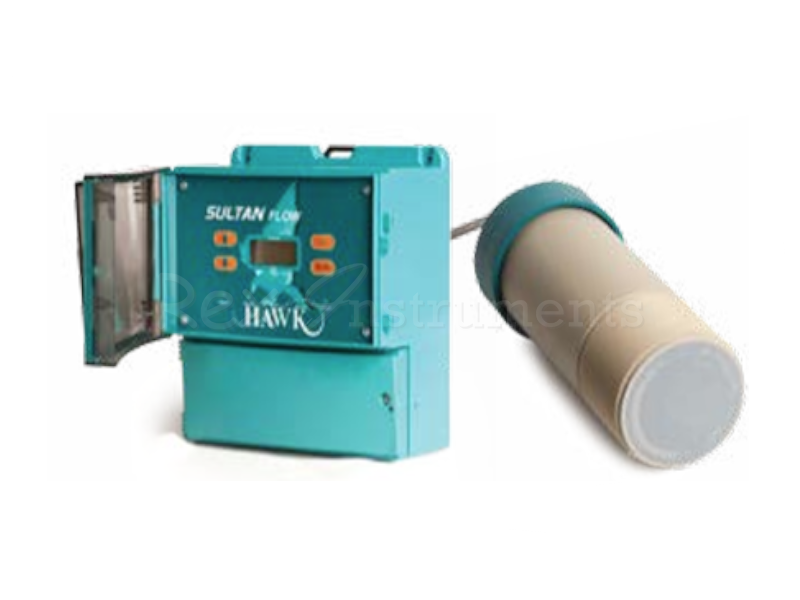

Hawk Measurement AWRF234 Sultan Flow Acoustic Wave Open Channel Flow Meter

Product Description

The Sultan Flow measurement system operates by transmitting an ultrasonic signal from its transducer towards the liquid being monitored. The reflected signal or echo is received by the transducer and processed. The time between transmission of the ultrasonic signal and reception of the echo is measured, and using the speed of sound through air, the distance from the transducer to the liquid level is calculated. Flow through the channel or structure is then calculated from the level measurement and the user entered properties of the channel.

Principle of Operation
The Sultan Flow system uses sophisticated software to locate and track the correct echo without being affected by echos from fixed objects or changes in the liquid surface. When the liquid level or surface conditions change, the system follows preselected signal tracking parameters. In the event of a total loss of signal, the system adopts signal recovery routines to relocate the correct liquid level. The system employs automatic gain control to compensate for changes in echo amplitude due to variations in environmental conditions. Continuous current, voltage and relay outputs are provided. These outputs can be programmed for failsafe conditions in the event of a loss of signal or system malfunction.

Certifications
CE, ATEX, CSA (Remote Transducer)

Optimized frequency selections to suit the application environment
Capable of monitoring liquid flow under the most difficult conditions
Real time diagnostic display
Flexible, multi point or calculated scaling of display and outputs
Suits a broad range of flumes, weirs and flow control structures

Primary Areas of Application Liquid Level:
Open Channel Flow
Water treatment
Sewage treatment
Irrigation
Industrial waste water
Power waste water
Environmental monitoring
Special flow requirements for unusual flow channels

Maximum Range: up to 20m (65ft), 20kHz liquids
Electronic Accuracy: +/- 0.25% of maximum range
Frequency: 20kHz, 30kHz, 40kHz, 50kHz
Resolution: 1 mm (0.04") 50, 40, 30,20 kHz
