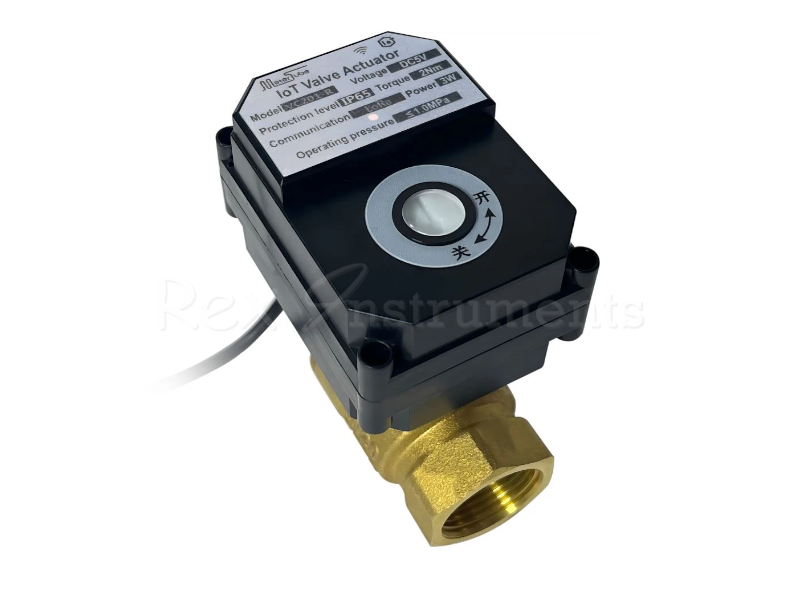

Gentos pflow Garden Flow Switch, Model VC200-R

Product Description

Garden Flow Switch, Model VC200-R Timing, Valve Adjustment
Gentos has newly researched and developed a cloud-controlled IoT valve actuator VC200-R.VC200-R use LoRa wireless communication technology that support LoRaWAN communication protocol.Long-distance transmission and strong penetration capabilities.

VC200-R Timing, Valve Adjustment.
VC201-R Timing, Valve Adjustment, power Failure mode control.

With cloud servers,user can remotely control IoT valve actuator on their PCs,help people control over water systems efficiently.

The following features of this product make it a hot-seller:
Enables users to open or close the valve, allow for percentage adjustment (0%~100%)
Ability to be connected by LoRaWAN, allowing it to be controlled and monitored remotely using a smartphone.
Applications where fluid flow control is required, such as in plumbing, irrigation systems, industrial processes.
The valve features stable performance, high sensitivity and anti-electromagnetic interference, can withstand 1.0Mpa static pressure.

APPLICATIONS
Farm Irrigation
Household Water Management
Building Water Management
Aquaculture

Garden Flow Switch, Model VC200-R
Timing Control
Wireless Communication
LoRaWAN Communication Protocol

SPECIFICATIONS
Valve Body Diameter:
Copper DN15~DN32
Stainless Steel DN15~DN25
Applicable Medium Water
Power Supply Voltage DC5V
Maximum Power 3W
Operating Pressure ≤1.0MPa
IP Rating IP65
Output Torque 2Nm

LoRa Communication:
Support LoRaWAN communication protocol
Maximum transmit power：22dBm
Temperature：-40℃~85℃

Controller Operation Remote control via MeterTube Mobile APP
Connection Method 2-Way internal thread G
Valve Body Material Copper, Stainless Steel
Medium Temperature ≤100℃
