ProComSol develops HART communicators for mobile device software that bridges the gap between HART Protocol devices, allowing for configuration, monitoring, calibrating, and troubleshooting of HART instruments in industrial plants.
Mobile :: Brands Masthead
Procomsol TAB-PC-C1D2-MOBI, Windows Class 1 Div 2 Tablet HART Communicator Kit, mobiLink

Procomsol TAB-PC-C1D2-MOBI, Windows Class 1 Div 2 Tablet HART Communicator Kit, mobiLink

Product Description


Description

Features and Benefits


TAB-PC-C1D2-MOBI, Windows Class 1 Div 2 Tablet HART Communicator Kit, mobiLink
Combines all components needed for an Intrinsically Safe cost-effective HART Hand-Held Communicator for Class 1, Division 2 applications.






DevCom2000 HART Communicator software bundled with a MOBI-HART mobiLink HART Modem and a Durabook R11 C1D2 Tablet.  For Class 1, Div 2 Hazardous areas.
Windows Rugged Tablet safe for hazardous areas included
Complete HART communicator
Suitable for hazardous areas
1 Year warranty

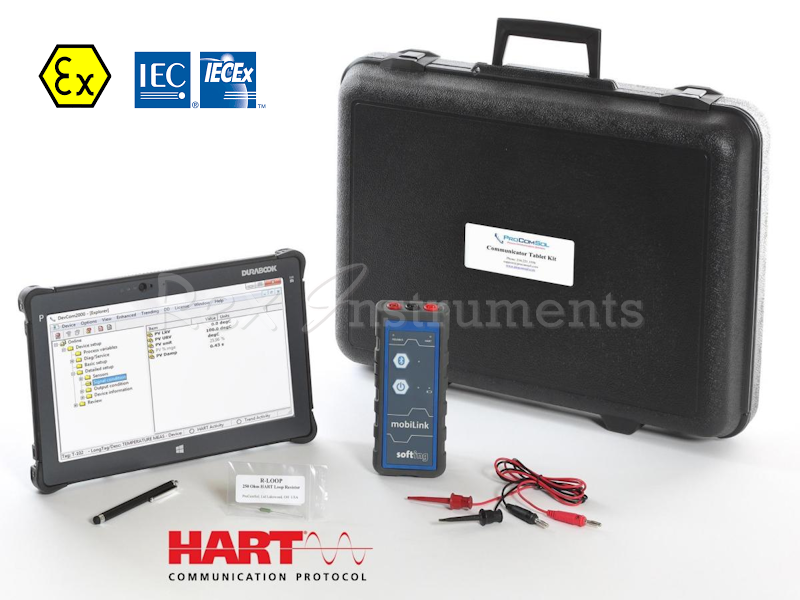

What's included:
DevCom2000 HART Communicator Software
MOBI-HART mobiLink HART Modem
Durabook R11 C1D2 Tablet, Class 1 Div 2
Complete Device Descriptor (DD) library
One year Update Subscription (SUB-1YR)
250 Ohm Loop Resistor
Rugged hard plastic case with carrying handle

SOFTWARE
DevCom2000, HART Communicator Software, Windows
Windows software used to perform complete HART device configurations using a Windows Tablet.
  • Comes with ALL the latest registered Device Descriptors (DD’s) from the FieldComm Group (FCG)
  • Complete access to all features of the device DD including Methods
  • Monitor PV, Multi-variables, and Device Status
  • View and edit device Variables
  • Windows Explorer menu layout
  • Device menu structure easy to navigate
  • Get to the information you want quickly
  • Communication and Event Logs
  • Save device configurations as text and PDF files for documenting the device
  • Write saved device configurations to devices (device clone)
  • Perform Calibration Checks
  • Save calibration and device configuration data to the cloud
  • Trend process variables as well as any other parameter associated with the device
  • Complies with the Enhanced DDL standard (IEC 61804-3)
  • Supports HART 5, 6, 7, WirelessHART devices, and HART-IP
  • Supports Windows 7 through 11
  • Supports 32 and 64 bit Windows
  • No tag limits!
  • 1 Year of free DD library and program updates
  • 1 Year warranty

MODEM
MOBI-HART, mobiLink Modem for HART
Perform HART communications between a HART transmitter and a Windows device using Bluetooth or Bluetooth Low Energy.  Safe for Hazardous areas.
  • Compliant HART Master
  • Suitable for Hazardous areas, Zone 1
  • Rugged IP54 enclosure
  • Bluetooth interface (Hazardous areas)
  • Battery powered, over 45 hours of continuous operation
  • Integrated loop for hanging strap attachment
  • 1 Year warranty

TABLET
Durabook R11 C1D2 Tablet
Durabook R11 C1D2 tablet with Bluetooth, Windows 11, WI-FI, 8GB RAM, 128GB Storage Memory, 11.6 inch Touch Screen.
  • Operating System Windows 11
  • Screen 11.6” FHD (1920 x 1080 pixels) Multi-Touch Screen
  • Communications Bluetooth 5.0, WLAN 802.11 a/b/g/n/ac
  • Bluetooth Modem Range 300 ft (100m)
  • Memor y8 GB RAM, 128 GB Storage
  • Camera 5 Megapixel rear, 2 Megapixel front
  • Battery 3950 mAh
  • Safety CSA Class I, Division 2, Groups A-D; T5
