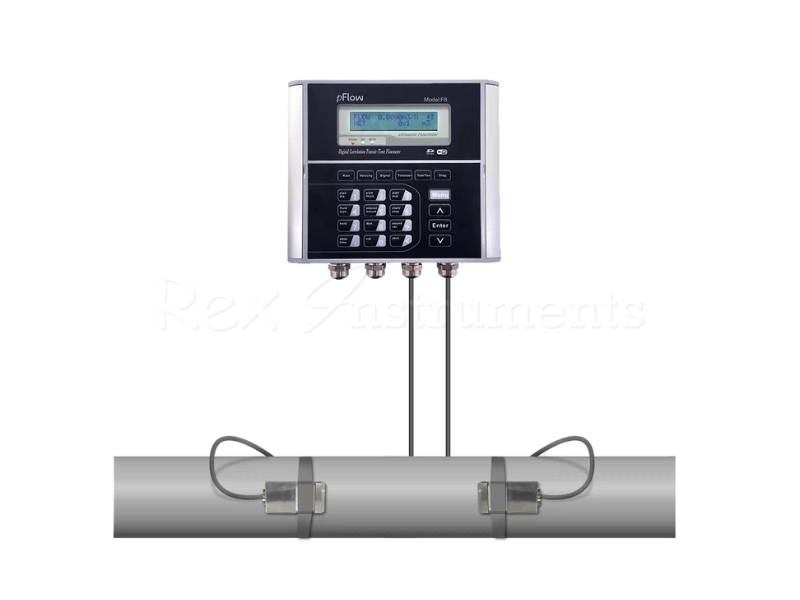

Gentos pflow PF8 Ultrasonic Flow Meter

Product Description

F8 Ultrasonic Flow Meter
F8 series ultrasonic energy meter that can realize the bidirectional independent measurement function of "cold" and "hot" It adopts advanced modular all-in-one design, independent menu operation, LCD backlight display, and it is suitable for the continuous measurement of cooling and heating energy of central air-conditioning's chilled water and cooling water, meeting different measurement requirements.

APPLICATIONS
Water and wastewater management
HVAC (Heating, Ventilation, and Air Conditioning) systems
Process industries (chemical, pharmaceutical, food and beverage)
Energy management and environmental monitoring
Agriculture and irrigation systems
Research and development
Facilities management
Industrial maintenance and troubleshooting
Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.

Carbon Steel/ Stainless Steel/ PVC/ Copper/ Aluminum/ Cast Iron/ Asbestos/ Ductile Iron/ Fiber Glass-Epoxy
Light weight, quick installation
Support RS232&RS485
DN25 to DN5000 pipes
Repeatability: 0.15%
Accuracy: ±2%

Performance specifications:
Flow range±(0.03ft/s ~ 40 ft/s) ±(0.01m/s ~ 12 m/s)
Accuracy± 0.5% of measured value
Repeatability0.15%
Linearity±0.5%
Pipe Size1" ~ 200" (25 mm ~ 5000 mm)

Function specifications:
Output :
-Analog output: 0/4 ~ 20 mA, (max load 750 Ω);
-Pulse output: 0 ~ 9999 Hz, OCT (min. and max. frequency is adjustable);
-Relay output: max. frequency 1Hz (1A@125VAC or 2A@30VDC).

Communication Interface RS232 & RS485
Power Supply 90 ~ 245 VAC (48 ~ 63 Hz) Or 10 ~ 36 VDC
Keypad 22 light tactile keys
SD Card (standard)Max record: 512 days
Record time interval: 1 ~ 3600 s

WIFI:
-Frequency range: 2.412~2.484GHz
-Transmitting power: 802.11b 16±2 dBm, 802.11n 13±2 dBm, 802.11g 14±2 dBm
Working temperature：-20~85℃
40m transmission distance in open environment40

Display 20 × 2 lattice alphanumeric, backlit LCD
Temperature Transmitter: 14℉ to 122℉ (-10℃ ~ 50℃)
Transducer: -40 °F ~ 176 °F (- 40 ℃ ~ 80 ℃, standard)

Physical specifications:
Transmitter NEMA13 (IP54).
Transducer Encapsulated design, IP68;
Standard cable length: 5m.
Weight Transmitter: approximately 1.0kg.
