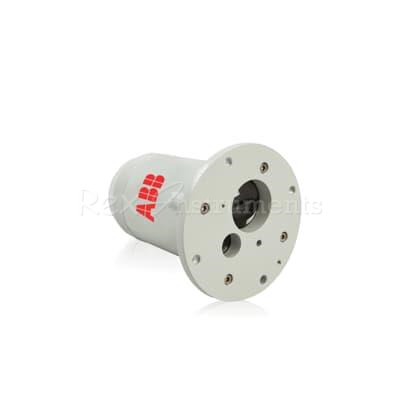

ABB Intermediate range laser level transmitter LM80

Product Description

The LM80 is a high performance laser transmitter that accurately measures level, distance and position over long ranges in extreme environments. It is a non-contact, level measuring instrument designed for granular solid materials and opaque liquids.
The LM80 features advanced timing and sophisticated signal processing for pinpoint accuracy at up to 100 m (330 ft.) for level applications and up to 150 m (500 ft.) for positioning applications.

FEATURES:

Maintenance free, non-contact continuous level sensor
Range up to 100 m (330 ft) for level applications
Range up to 150 m (500 ft) for positioning applicationsEasy and intuitive setup
No calibration required
Continuous level monitoring for granular solid materials and opaque liquids
Measures solids and opaque liquids at any angle
Last Pulse Detection for Measurement with Light and Moderate Dust
Built-in laser pointer for accurate alignment in narrow or tall vessels
Auto-ranging to measure all levels
Available non condensing heated optics prevent condensation issues
No Beam Divergence = No False Echoes
Rugged and Robust Aluminum Enclosure
CSA, ATEX and IECEx potentially explosive atmosphere ratings

OPTIONS:

Many mounting options
Configuration device (LCD2)
Non-condensing optics (heated lens)
Stainless steel housing
Tri-clover interface

The LM80 uses a high speed laser pulse to measure distance. The laser light is emitted towards the surface and some of it reflects back to the instrument where it is detected by a sensitive optical receiver. The time it takes for the light to travel to the surface and back to the instrument is directly proportional to the distance between the instrument and the surface. Using a time-of-flight calculation, and knowing the height of the vessel, the LM80 accurately measures the distance to the target surface using the equation below:
Level = height - speed of light x time-of-flight
2
The unique characteristics of laser light give the LM80 significant performance advantages over other technologies. The narrow, long range beam can measure both near and far distances while the optical wavelength makes it easy to evaluate applications. If you can see the surface clearly, the LM80 can measure the level.

The characteristic narrow beam divergence of the laser permits direct aiming to the target surface without interference from structure or falling material. With both continuous 4-20 mA and single point relay outputs, the LM80 can operate as a process control sensor while simultaneously providing high and low alarms.
