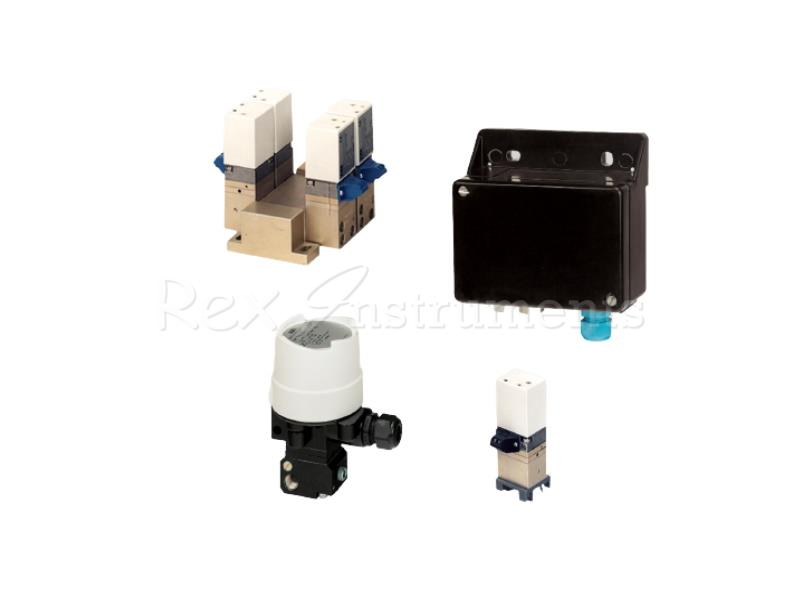

ABB I/P converters TEIP11 / TEIP11-PS

Product Description

Electro-pneumatic signal converters are the link between the control rooms and pneumatic actuators. I/P converters are available with and without booster stage.

The I/P converter with various housing is available for cabinet installation, field installation, rail installation and as slide-in type. The signal conversion is based on standard signals. Current signals 0/4 to 20 mA are converted to pressure signals 0.2 to 1 bar or 3 to 15 psi.

General specifications:

Small dimensions
Variable designs

– Control room housing IP 20, for rail and block mounting
– Field housing, polyester IP 54
– Field housing, aluminium IP 65
– Field housing, stainless steel IP 65

High immunity to shocks and vibrations with an effect < 1% for loads up to 10 g
Wide temperature range -40 °C (optionally -55 °C) to 85 °C
Worldwide approvals for Explosion Proof and Intrinsic SafetyWorldwide approvals for Explosion Proof and Intrinsic Safety
FF device registration: IT campaign no. IT 016800, ITK-Ver. 4
Easiest commissioning and operation on site due to local operation and auto adjustment
Robust design and flexible in use with linear and rotary actuators
