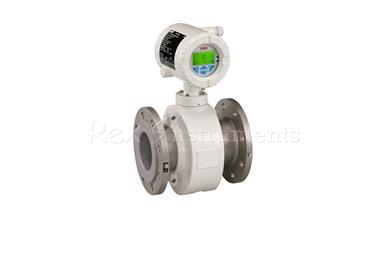

ABB Electromagnetic flowmeter ProcessMaster FEP300

Product Description

The modular design of the ProcessMaster FEP300 standard version offers the industry´s widest range of liners electrodes and sizes to meet the needs of even the most demanding process applications in sectors as diverse as chemical, power, oil & gas, pulp & paper and metals & mining.
Available as integral mount design or remote mount design system.

The powerful transmitter is easy to use and provides the output signal that meets the needs.
ProcessMaster FEP300 is a versatile, reasonably priced, most accurate flow meter tailored for all process industry applications. A flowmeter with base functionality, short delivery and a simple and clearly understandable documentation.

Versatile and simple configuration

– Through glass configuration eliminating the need to remove the cover and reducing commissioning time
– Soft key based functionality
– "Easy Set-up" function

State-of-the-art memory technology

– Data storage enables transmitter exchange without the need for reconfiguration

Diagnostics for real-life-situations

– Simplified plant trouble shooting
– Status messages in accordance with NAMUR
– Help texts in LCD display

ScanMaster in situ verification software option

– Allows the customer to perform in situ verification of the flowmeter and the plant

General specifications:

Measuring value error– Standard 0.4 % of rate, optional 0.2 % of rate
Nominal diameter– DN 3 to 2000 (1/10 to 80 in.)
Process connection– Flange in accordance with DIN 2501 / EN 1092-1, ASME B16.5 / B16.47, JIS, AS2129
Nominal pressure– PN 10 to 100,– ASME CL 150, 300, 600, 900, 1500, 2500
Lining– Hard rubber, soft rubber, PTFE, PFA, ETFE, Linatex
Communication– HART, PROFIBUS PA, FOUNDATION Fieldbus
Explosion protection approvals– ATEX, IECEx, FM, cFM, NEPSI, GOST
Special features: Process diagnosis– Empty pipe and partially filling detection
