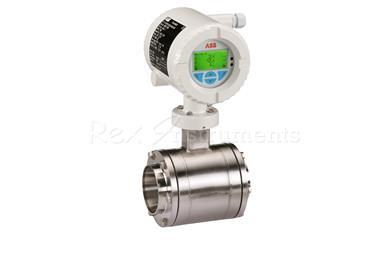

ABB Electromagnetic flowmeter HygienicMaster FEH500

Product Description

The HygienicMaster FEH500 enhanced version is designed specifically for the food & beverage, pharmaceutical and biotechnical industries. Manufactured from FDA approved materials and certified in accordance with 3-A.
Available as integral mount design or remote mount design system.

The stainless steel exterior, the variable process connection, the advanced signal processing and the state-of-the-art data storage provide a complete and cost effective flow solution.
HygienicMaster FEH500 is a versatile, reasonably priced, most accurate flow meter tailored for all process industry applications. A flowmeter with extended functionality and options, short delivery and a simple and clearly understandable documentation.

Intuitive and simple configuration

– Through glass configuration eliminating the need to remove the cover and reducing commissioning time
– Soft key based functionality
– "Easy Set-up" function

State-of-the-art memory technology

– Data storage enables transmitter exchange without the need for reconfiguration

Diagnostics for real-life-situations

– Status messages in accordance with NAMUR
– Help texts in LCD display

Extended diagnostic and monitoring functions

– Electrode coating detection
– Gas bubble detection
– Conductivity and sensor temperature monitoring
– Grounding verification

ScanMaster in situ verification software option

– Allows the customer to perform in situ verification of the flowmeter and the plant

General specifications:

Measuring value error– Standard 0.4 % of rate, optional 0.2 % of rate
Nominal diameter– DN 1 to 100 (1/25 to 4 in.)
Lining– PFA (vacuum tight)
Process connection material – Flange: stainless steel, – Variable process connections: 1.4404
Communication– HART, PROFIBUS PA, FOUNDATION Fieldbus
Explosion protection approvals– ATEX, IECEx, FM, cFM, NEPSI, GOST
Certificates– 3-A, FDA-approved material
Special features: Batch functionality– Presetting counter, overrun correction, external start / stop, batch end contact
Process connection

– Wafer type design
– Flange in accordance with DIN 2501 / EN 1092-1, ASME B16.5 / B16.47, JIS
– Threaded pipe connection in accordance with DIN 11851
– Weld stubs
– Tri-Clamp in accordance with DIN 32676, ASME BPE
– External thread in accordance with ISO 228 / DIN 2999
