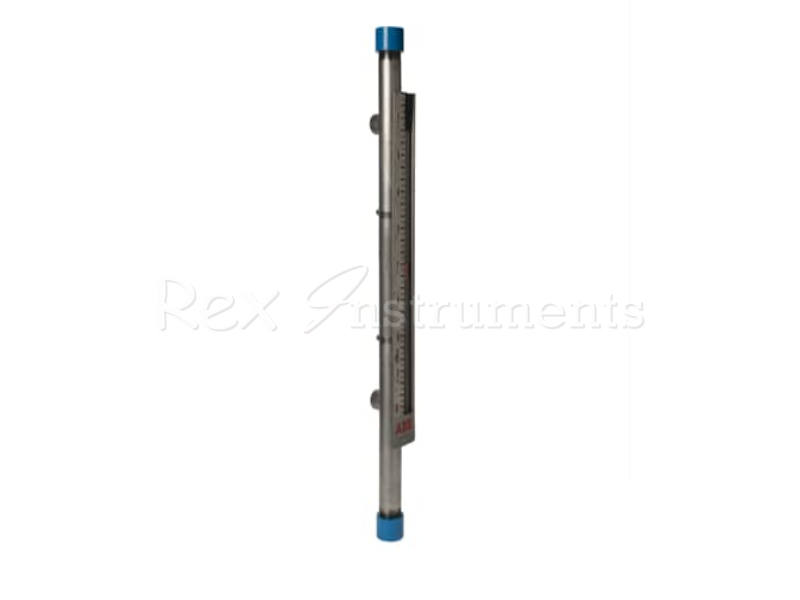

ABB Econolev Magnetic Level Gauge LMG100

ABB Econolev Magnetic Level Gauge LMG100

Product Description


Description

Data



The ECONOLEV LMG100 is a magnetic liquid level gauge specifically designed for the OEM / commercial storage tank, and light industrial market.

It is engineered to meet most liquid measurement applications where a simple, non custom armored level gauge is required. The ECONOLEV provides an economical solution to traditional exposed glass level gauges.




FEATURES:
  • Standardized design configuration for simple selection
  • Low cost
  • 2 in. (50.8 mm) schedule 40, 316SS pipe chamber
  • Gauge rated to 13.7 bar (275 psi) (150# flange rating) and 93.3 ËšC (200 ËšF)
  • Threaded top and bottom gauge and cap design allows easy maintenance
  • Clear sealed Lexan tube for shuttle indicator
  • Welded, side connected, 1in. NPT-f process connections
  • 1/2 in. NPT-f vent and drain connection with plug
  • Stainless steel scale indication
OPTIONS:
  • 316SS Threaded end caps (Standard is Carbon Steel)
  • Magnetically actuated level switches
  • Magnetostrictive level transmitter
Applications
  • Diesel Storage tanks
  • OEM tanks
  • Water Treatment tanks
  • Agricutural chemicals
  • Most liquid tanks
